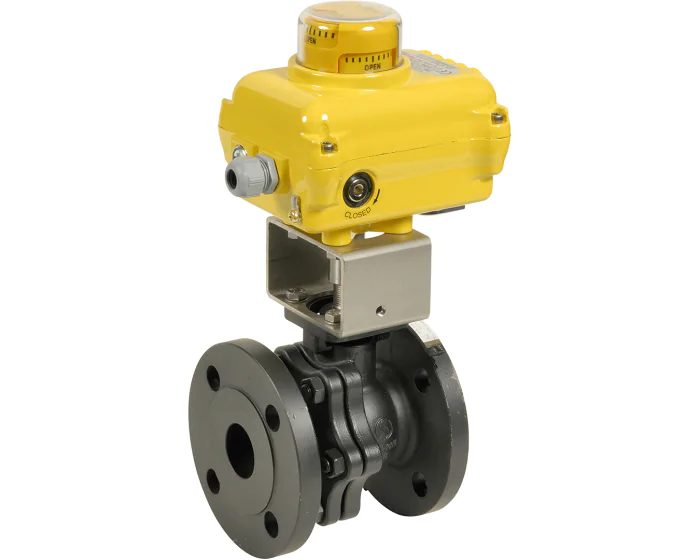

Split body carbon steel flanged ball valve 752 DN15 + SA05 230V AC
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN150 - 6'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 350.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Power (W) | 60 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 38 |
| Electric actuator series | SA/NA series |
| Seats | TFM 1600 |
| Operating time (s) | 24.0 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 15 | 274282023010 | S1005552 |
€611.01
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 20 | 274283023010 | S1005553 |
€623.73
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 25 | 274284023010 | S1005554 |
€652.39
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 32 | 274285023010 | S1005555 |
€703.29
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 40 | 274286023010 | S1005556 |
€755.29
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 80 | 274289023130 | S1005557 |
€1,637.90
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 100 | 274290023150 | S1005558 |
€2,057.96
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 125 | 274291023150 | S1005559 |
€2,621.79
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 150 | 274292023160 | S1005560 |
€3,093.44
(excl. btw)
|
add to cart |
